Log Loaders

Log Loaders/Road Builders

An Icon Of Strength

DEVELON log loaders handle timber with performance, durability, and precision. Each model delivers effective, efficient forestry work all day long. Even in extreme conditions, DEVELON provides unbeatable productivity and a cost-to-performance ratio that any owner can appreciate. For maximum productivity, pair your log loader with a 360-degree rotating log grapple. DEVELON log loaders come in a variety of sizes and power ratings from our smaller DX225LL-5 to our bigger DX380LL-5 to meet your individual needs.

Download Brochure

Models Performance Reliability & Maintenance Comfort & Instruments Special Offers FAQs

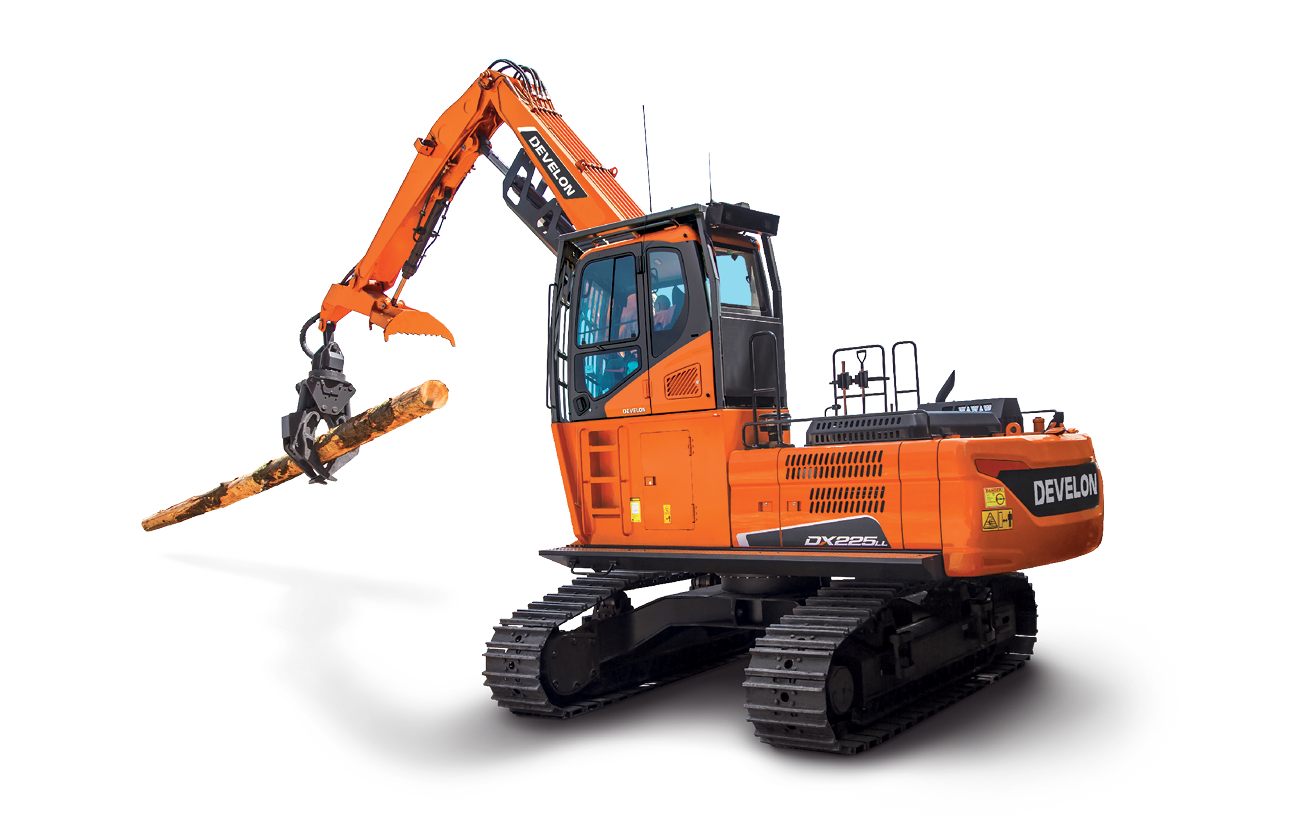

DX225LL-5 Log Loader

Rated Power, Net: 162.8 hp @ 1800 rpm

Reach, Ground: in

Loading Height: 23' 1"

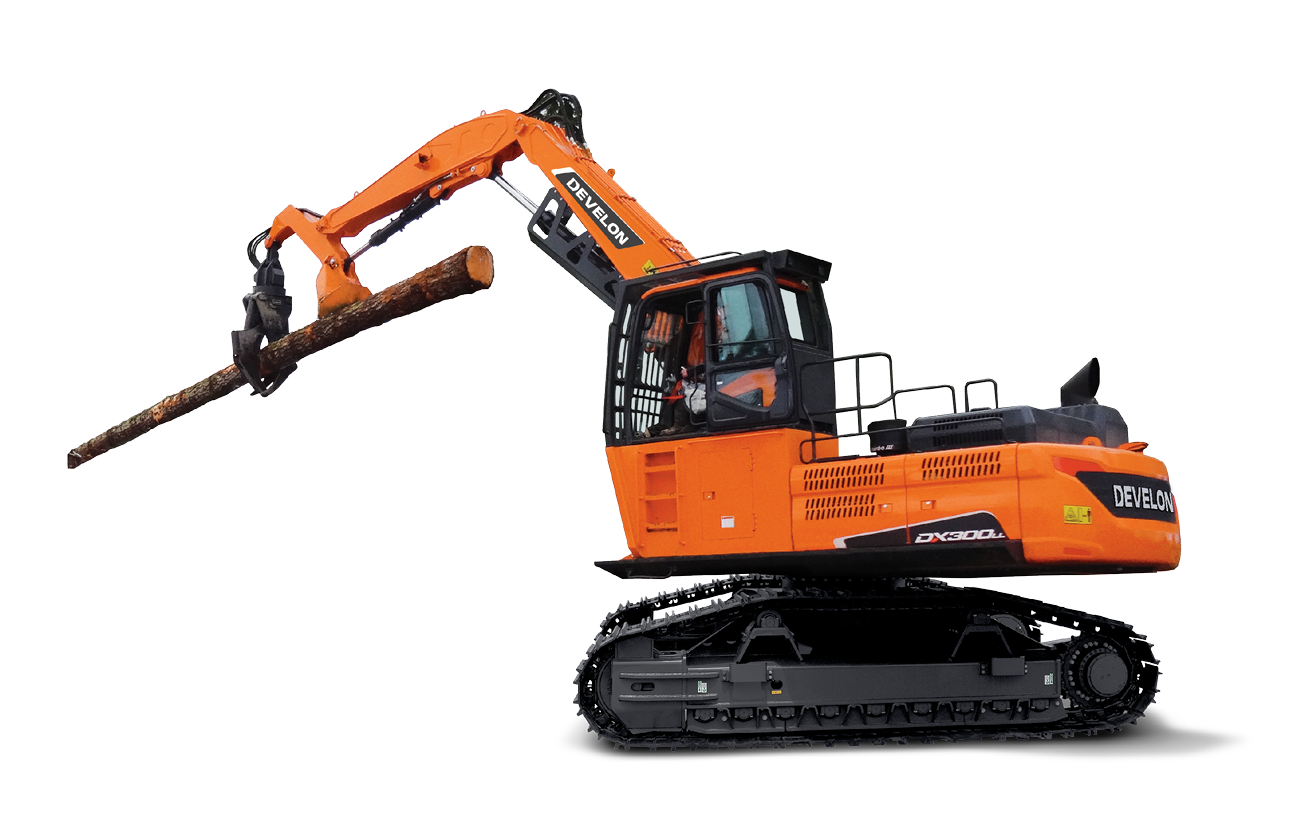

DX300LL-5 Log Loader

Rated Power, Net: 266.5 hp @ 1800 rpm

Reach, Ground: N/A

Loading Height: N/A

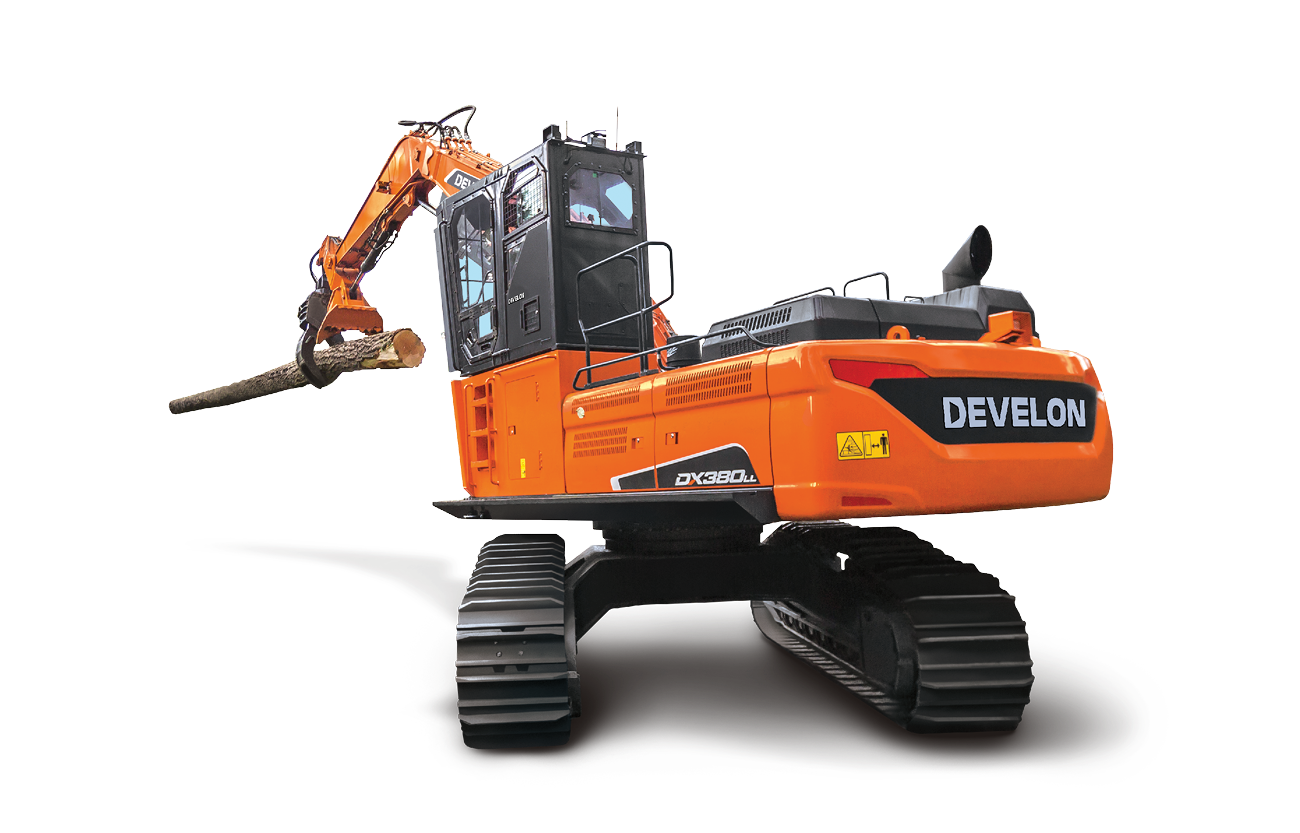

DX380LL-5 Log Loader

Rated Power, Net: 312.5 hp @ 1800 rpm

Reach, Ground: 43' 4"

Loading Height: 38' 5"

Drive Productivity

Designed specifically for forestry applications, each DEVELON log loader features a high and wide undercarriage design, heavy-duty track links, full-length track guiding guards, and top rollers with special clean-out brackets.

Maximum Durability

DEVELON log loaders offer heavy-duty features to help pick, move and place heavy timber. Robust hydraulic cylinders and booms easily pick up fallen trees. High and wide undercarriages provide stability while operating.

Fuel-Saving Power Modes

DEVELON log loaders feature an Electronic Power Optimizing System (EPOS) to maximize machine productivity and optimize fuel consumption. The EPOS connects the log loader hydraulic system and engine controls via a data transfer link, and has four power modes.

DEVELON Log Loaders Are Always Ready

Built to Withstand Rugged Conditions

DEVELON designs log loaders for durability in the most challenging work environments. The upper structure features a reinforced mainframe, integral catwalks and heavy-duty side doors. The cab has a 4 ft. riser and for transporting, hydraulic tilt. Guarding on the upper structure protects key components and access points, including hydraulic and cooling system access doors, the cab, hydraulic cylinders and undercarriage. DEVELON also offers an optional side-entry forestry cab that is certified for Oregon OSHA and British Columbia WCB standards.

Easily Accessible Service Points

DEVELON log loaders offer extended maintenance intervals and easy access to service points, which increases machine uptime and operator productivity. Maintenance features include:

-Centralized grease points
-Wide side-access doors
-Boom pivot bushings with 250-hour greasing intervals
-Large-capacity engine-air precleaner that removes more than 99 percent of airborne particles and extends filter cartridge service life

Features to Protect Your Investment

DEVELON log loaders also feature a high and wide undercarriage, which makes traversing over stumps easier. Tracks feature heavy-duty links with double grouser shoes and full-length track guiding guards. DEVELON also incorporates special clean-out brackets with the top rollers to reduce the risk of materials becoming lodged inside.

Superior Standard Warranty

With DEVELON log loaders and road builders, full coverage for 36 months or 5,000 hours (whichever comes first) is standard. Plus, count on parts and service support from your local authorized DEVELON dealer. Learn more here.

Day-Long Comfort

More Comfort Advantages Than Ever

When you're comfortable, you’re productive. That’s why DEVELON log loaders feature an all-weather steel cab with a reclining suspension seat that adjusts to your height and weight. The seat also features adjustable head and arm rests. To reduce fatigue caused by engine noise, DEVELON also incorporated sound-suppression technology into the cab.

Like the seat, the joystick controls adjust to match your preference. The controls can move up and down for more ergonomic operation, which reduces operator fatigue. Operators can quickly change from ISO to BHL control patterns using the pattern change valve.

More Comfort Advantages Than Ever

A multi-function color LCD display shows a variety of machine information, including operation history, flow rate control and filter/oil information. This display also receives video from the rear-facing camera or optional, side-mounted camera. You can also reduce operating costs by monitoring your DEVELON heavy equipment and maintenance schedules with DEVELON telematics.

Log Loader Offers

Loan

Rates as low as 0% for up to 60 months

Lease

Aggressive lease payments and custom or seasonal lease payments available

Rebate

Rebates up to $16,500

Warranty

Includes 3 year, 5,000-hour full coverage Standard Warranty

Program information provided above is general and descriptive in nature and not intended to provide specific advice or recommendations. Programs only available at participating and eligible dealers through financing providers used by DEVELON. Any financing subject to lender credit approval. See participating dealers for specific program details. Offers may vary by product type, series, model, and select units in dealer inventory. Offers only apply to new equipment in US and Canada, not government/national accounts or municipal/utility bid customers. Restrictions will apply; administrative fees may apply. Prior purchases not eligible unless allowed by the specific program. DEVELON disclaims all representations and warranties, express or implied, or any liability from the use of this material. Terms subject to change at any time without prior notice.

Log Loader FAQs

What is a log loader, and what are its primary uses and applications?

A log loader is a type of forestry heavy machinery designed for handling and moving logs. These machines move logs at timber harvesting sites, load logs onto trucks and stack logs at sawmills. Most log loaders feature a hydraulic boom and grapple to reach, grab and lift. Road builder models are a type of log loader and are used as land-clearing equipment.

What are the different types and sizes of log loaders available?

DEVELON offers three log loaders and road builder iterations for the forestry industry that vary in horsepower and loading height. Contact your local DEVELON dealer for help choosing a log loader for your situation.

How do I choose the right log loader for my specific logging or forestry needs?

Consider the following specifications when choosing a log loader for forestry: horsepower, reach at ground level and loading height. Plus, consider how much the logging equipment can lift. Make sure the log loader’s lifting capacity matches the weight of the logs, keeping in mind the heaviest loads you expect to handle.

What is the average cost of purchasing or renting a log loader?

The average price of purchasing or renting a log loader can vary based on the local market, machine class and options. First, determine your necessary log loader specs. You can typically find equipment specifications on the model page of the manufacturer's website. This will help you narrow down your options. Select a machine that offers the performance and operational capabilities to be efficient.

How much weight can a log loader lift, and what is its maximum reach?

The weight a log loader can lift depends on the size of the machine. The log loader’s maximum reach also depends on the size of the machine. Log loader owners should refer to the lift charts in the Operation & Maintenance Manual to understand the machine’s lifting abilities and maximum reach. Contact your local DEVELON dealer for help selecting a log loader for your needs.

What are the safety features and considerations when operating a log loader?

Safety is a top priority in logging and forestry operations. Owners are responsible for log loader operator training for all employees. DEVELON log loaders are built with a raised cab for enhanced visibility. A standard rearview camera provides extra visibility on the machine’s LCD screen. An optional side view camera is available for further visibility of the side of the log loader. Find more information in safety manuals produced by the Association of Equipment Manufacturers.

What attachments are available for use with log loaders?

One of the most common attachments is a log loader grapple. Logging and forestry operators combine the log grapple with a live heel to grab, lift and carry logs. Other attachments for log loaders include saws, debarkers, augers, mulching heads, brush rakes and buckets.

What are the maintenance requirements for a log loader?

Log loader maintenance starts with regular inspections to ensure that the machine is in good working order. Maintenance tasks include checking and filling fluids, changing filters, cleaning the cooling system and greasing lubrication points. Plus maintaining the undercarriage and examining attachments. Keep a maintenance log that documents inspections and log loader repairs.

Where can I find authorized dealers or suppliers of log loaders?

To find a DEVELON dealer that sells log loaders in your area, head to Find a Dealer.
