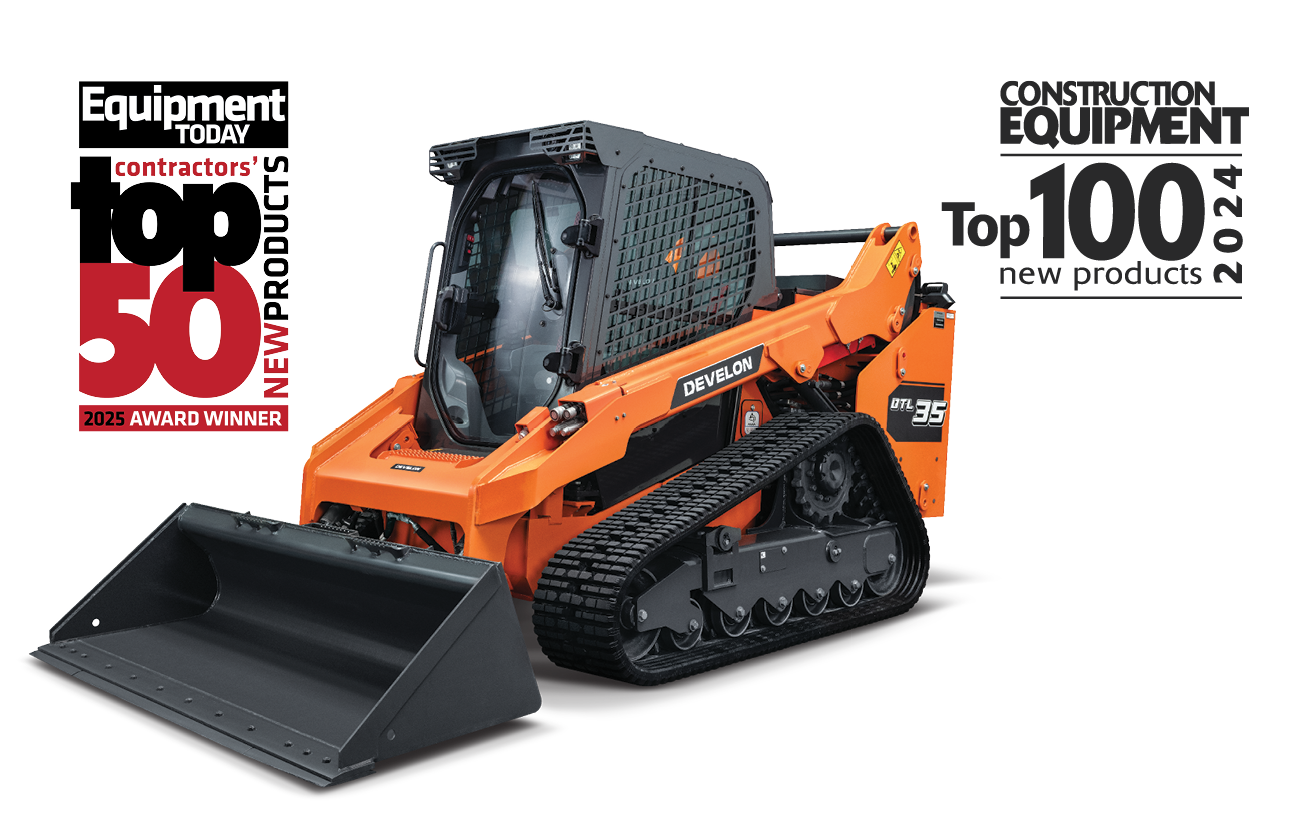

DTL35 Compact Track Loader



The Compact Track Loader Worth Waiting For



Designed and built by DEVELON, this new compact track loader delivers superior horsepower and unstoppable versatility. The DTL35 will be the first compact track loader in our lineup — coming in 2024.

DTL35 Delivers Premium Features
Designed for premium performance, the DTL35 has the superior power to operate attachments, visibility and comfort to keep crews productive, and premium features to maximize your return on investment. It’s backed by a superior warranty and local dealer support.
Superior Power
The DTL35 features our 115.3 hp D34 DEVELON engine that does not require a DPF. That, along with an impressive rated operating capacity, results in exceptional digging and pushing performance on the most challenging job sites.
Reliable Performance
Premium features help maximize productivity. The DTL35 includes a torsion suspension system, load isolation system and dual auto leveling. Electrohydraulic joystick controls and two-speed travel help operators accomplish more every day.
Attachment Versatility
The DTL35 is ready for anything. It’s equipped with high-flow auxiliary hydraulics to run a long list of compact track loader attachments — including 13 DEVELON-branded loader attachments. The standard hydraulic quick coupler makes changing them quick and easy.
Maximum Visibility
Our compact track loader delivers clear visibility to the job thanks to the wider cab with large windows, standard rearview camera, LED work lights, swing-out door with polycarbonate glass, 8-inch Smart Touch display and optional 270-degree around view monitor (AVM) system.
Easy Maintenance
The swing-out tailgate provides easy access to regular inspection points. An optional reversible fan helps remove debris and keeps the engine cooler. When maintenance is required, the cab tilts up — no need to disassemble the cab to reach critical components.
Operator Comfort
The DTL35 compact track loader is designed for added comfort to improve productivity. Standard features include an air-suspension seat, pressurized cab with spacious interior and high-performance air conditioning. There’s also a heated- seat option.
Specifications
Horsepower (SAE J1349)

115.3 hp (86 kW) @ 2,400 rpm

Operating weight

12,785 lb. (5799 kg)

Rated operating capacity (ISO)

35%: 3,806 lb. (1726 kg)

50%: 5,438 lb. (2466 kg)

Ground pressure

15.7” Track 5.7 psi (0.39 bar)

17.7” Track 5.1 psi (0.35 bar)

Auxiliary standard flow

22 gal/min. (84 L/min.)

Auxiliary high flow

40 gal/min. (151 L/min.)

Travel speed

1st: 6.1 mph (9.8 km/h)

2nd: 9.2 mph (14.8 km/h)

Telematics

Standard MY DEVELON fleet management system provides the data you need to track diagnostic information, know your machine’s location and monitor preventive maintenance intervals. It’s a powerful tool you can use from a user-friendly mobile app and website.

DEVELON equipment warranty graphic representing 3-year, 5,000-hour full coverage.
A Best-in-Class Warranty
DEVELON compact track loaders include a full-coverage warranty for 3 years or 5,000 hours, whichever comes first, with parts and service support from your dedicated local authorized DEVELON dealer. DEVELON Protection Plus® extended warranty coverage is also available.
Get the Details
The in-cab of the DEVELON compact track loader
Learn More From Our Expert
Get more details in this blog article as Thomas Lee, product strategy manager, provides additional detail about the key features and specifications that make this powerful, versatile machine ideal for a variety of tasks.
Read Blog
