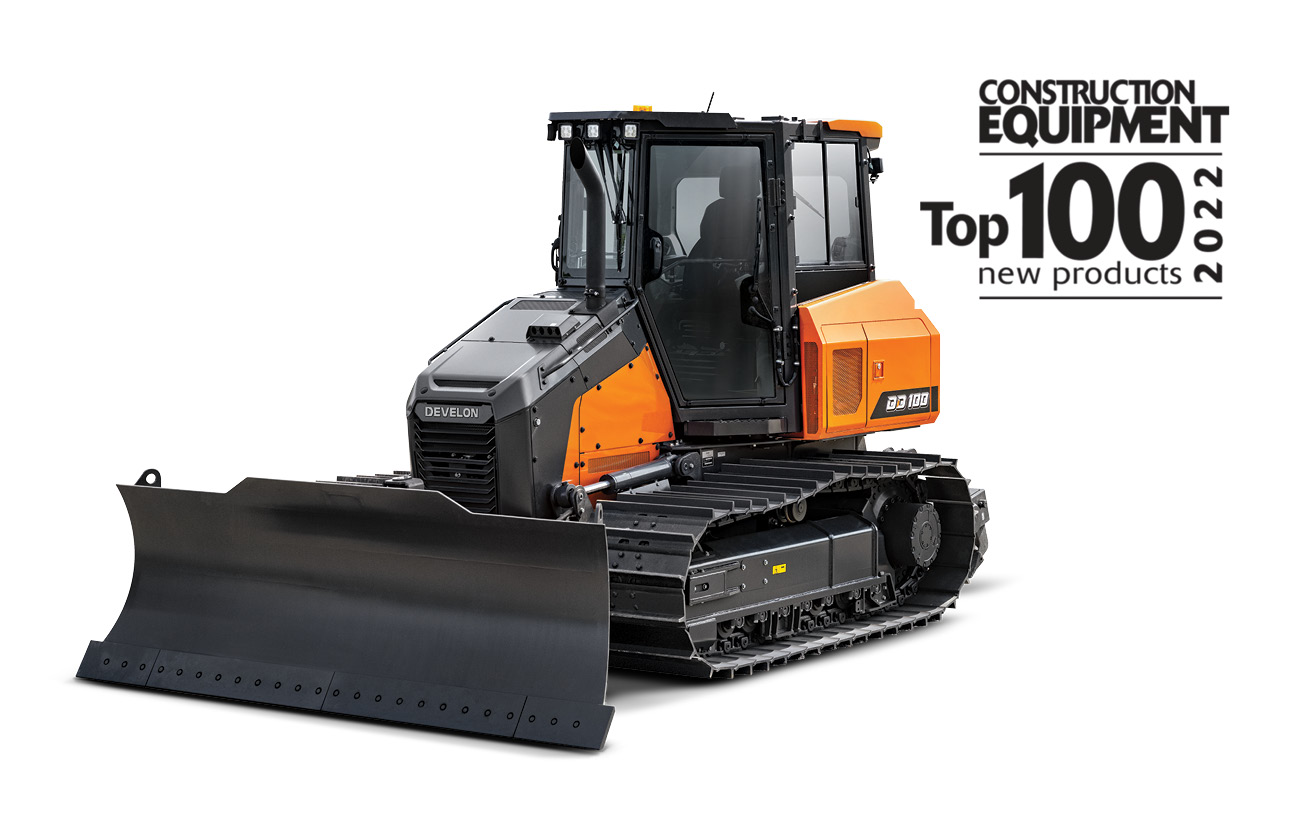

Dozer

The 6-way variable-angle pitch dozer blade provides more precision when moving or grading dirt, clay and other materials from nearly any angle to reduce the number of passes on each job. The dozer blade moves freely to lift, tilt and angle, and you can change the blade pitch using the 2-way mechanical adjustment.

Grading is easier using the 2D blade assist option, even for novice operators. Program the needed inputs, and the machine controls blade functions — finishing the job faster and more accurately. No GPS or lasers required.

Select the blade float function for smooth back grading or fine finishing. Push the blade shake button to quickly remove stuck-on materials.

The unique undercarriage system, with both single- and dual-flange rollers, is designed for convenient, cost-effective maintenance. Areas of the undercarriage that naturally experience greater wear and tear are easy to access. You can get affordable replacement parts through your local DEVELON dealer.

Regular inspection points for the dozer are conveniently accessible at ground level. When maintenance is needed, the dozer cabin tilts up — there’s no need to disassemble the cab to reach critical components.

General-purpose and full-guard track guard options are available for exceptional performance and uptime protection.

Optimized for more power output with reduced fuel consumption, the DEVELON dozer is designed with a Tier 4-compliant diesel engine to reduce emissions — and does not require the use of a diesel particulate filter (DPF) to meet current emission standards.

Several features take efficiency further, including an ECO mode that reduces daily fuel consumption up to 5% without sacrificing grading performance when working in lower tractive conditions.

Auto idle and auto engine shutdown features also help save fuel.

Optional 3D machine guidance and 3D machine control features using GPS technology are available for greater grading accuracy and ease of operation.

The 3D system reduces operator inputs by up to 80%, activating automatic blade movements based on GPS coordinates to more precisely meet the critical elevation and slope specifications required for a variety of grading tasks. It allows operators to work more quickly, more accurately and with greater efficiency.

The DEVELON dozer was designed to meet the needs of operators of every skill level. Electro-hydraulic controls are standard, making the machine easier to operate — even for inexperienced crew members.

You can customize the controls to your individual preferences. If you’re more experienced, you can adjust the machine for finer control. If you’re less experienced, you can slow things down.

The user-friendly, multilingual DEVELON Smart Touch screen displays all important settings and information on one screen. From the easy-to-read touch screen, operators can monitor critical dozer functions and control machine settings, rearview camera, heating and cooling, radio, Bluetooth® wireless technology and more.

A standard feature on the DEVELON dozer, DEVELON telematics monitors the health, location and productivity of your DEVELON equipment from a user-friendly mobile app and website.

The system helps prevent theft, avoid unauthorized use of your machine, see when maintenance is due, and track oil pressure, operating temperature and more.

Your dealer can also monitor your equipment status and alert you when your machine needs service.

The front nose of the DEVELON dozer has a narrower design that makes it easier to see your work.

There’s no precleaner to obstruct the view of the blade. Instead, an inline precleaner is hidden under the hood. The unique electronic cooling system was moved to the back of the machine to further improve front visibility. The front pillars have been minimized to provide maximum glass area, and the dozer also features all-glass doors for a full view of the working environment.

A standard rearview camera — an option on competitor dozers and bulldozers — provides the operator with an additional view of the dozer’s surroundings, increasing confidence and productivity.

The DEVELON dozer cab layout and controls are similar or the same as DEVELON -7 Series excavators and wheel loaders, making it easier for operators to move from machine to machine.

The ergonomically designed joystick offers low-effort control to help reduce operator fatigue.

The cab’s suspension system (CabSus mount) dampens vibrations and provides outstanding protection against impact. This system absorbs shocks and vibrations much more effectively than a conventional silent block suspension system.
