Built for Maximum Productivity

Equipped to handle the largest loads, the DEVELON DL580-7 wheel loader allows operators to efficiently fill a 24-ton capacity, over-the-road truck in just two passes. The larger load capacity reduces cycle times and makes this a perfect machine for heavy-duty jobs.
The DL580-7 also has an enhanced front work group that features a reinforced Z-bar, larger-profile arm and lift cylinder geometry that improves lifting capacity. This model is built for mining and aggregate work as well as heavy-duty construction jobsites.

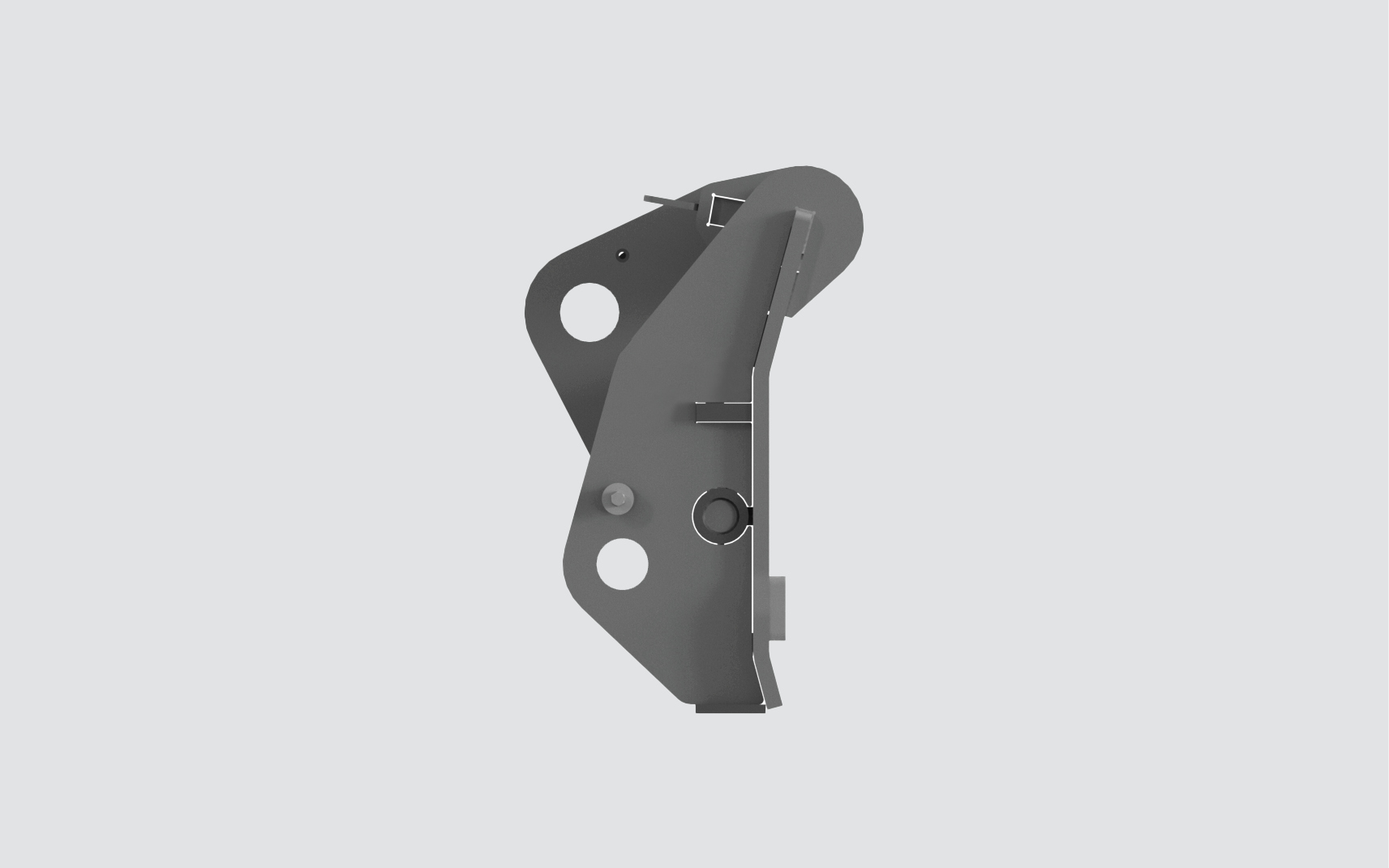

Options include a quick coupler, additional larger counterweight and Load Isolation System.

The exclusive Standard Transparent Bucket option provides a supplemental visual perspective by allowing operators to “see-through” the bucket from an in-cab display.

The DEVELON Smart Load weighing system measures the weight of material in the bucket.

Heavy-Duty Components for Heavy-Duty Work

The DL580-7 was redesigned with reinforced components to withstand the most rugged work and stronger axles to support larger bucket capacities.  Outboard brakes are located in final reduction where the rotation speed is lower, greatly extending the lifetime of the brake discs.

A hydraulically driven reversible fan, reinforced box frame with an articulating design and large center bearings and self-centering, double-tapered roller bearings provide additional strength and reliability. The bearings have dust seals and covers and are vented to prevent grease overfill.

The axle cooler option on the DL580-7 improves reliability for applications like carrying loads long distances or working in high ambient temperatures.

Comfortable Control

Frequently used controls are located for easier, more intuitive use. The upgraded heating and cooling system has new outlet locations to optimize airflow, and leg room has increased.

For improved visibility from the cab, the total glass area is 14% larger than prior models and a full glass door improves visibility on the left side. Large mirrors extend the operator’s view to the side and rear of the machine, and optional LED work lights are available. A rearview camera provides an additional view of the machine’s surroundings and appears on the DEVELON Smart Touch display.

The display shows all important settings and information, including the view from the rearview camera.

The DEVELON Smart Key fob unlocks the cab and allows push-button starts.

Easy Loader Maintenance

Maintenance is quick and easy on the DL580-7 wheel loader. It features easy-reach oil sampling and pressure test ports and engine and coolant drains.

DEVELON Fleet Management helps you monitor your DEVELON equipment and manage maintenance to reduce operating costs — and is a standard feature on all -7 Series wheel loaders.

The automatic lubrication system, standard on the DL580-7, improves machine reliability and saves daily maintenance time.

Designed for Improved Efficiency.

The DL580-7 offers a variety efficiency features, including Situation Awareness Technology (SAT), standard auto-idle and auto-shutdown features, and a Smart Guidance System that helps operators use the machine more efficiently.

Three engine power modes are available: Normal for optimized fuel usage, Power for demanding tasks and Situation Awareness Technology (SAT) that automatically adjusts the engine output in real time to the needs of the drivetrain and hydraulics to help save fuel without compromising performance.  And automatic transmission modes shift gears at just the right point to maximize efficiency.

To comply with Tier 4 emissions standards, the DL580-7 incorporates a high-pressure common-rail (HPCR) fuel delivery system as well as cooled exhaust gas recirculation (CEGR), combined with a diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR) with diesel exhaust fluid (DEF).
